1. The operating radius can be expanded according to
working conditions
2. Capable of lifting a heavy deadweight
3. Due to the simplicity of its operating S/W, this type of
Balance Lift is convenient to use and capable of performing
3D actions easily.
4. In case of interruption of air supply, a built-in safety device
prevents the load from falling down.
5. Swiftness and safety of work can result in high work
efficiency.
|
|
 |
 |
 |
| |

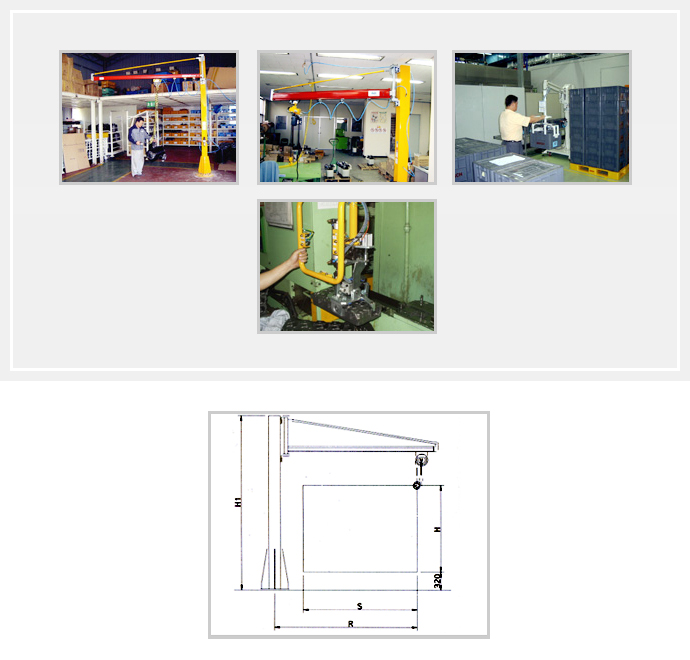

| ㆍThe measurements below can change depending upon the on-site conditions. |
|
MODEL
|
CAPACITY
(kg)
|
MOUNTING
|
H
|
H1
|
S
|
R
|
|
ABJ-70
|
70
|
fix
|
1000~2500
|
1000~3150
|
2000 3000 4000
|
2400 3400 4400
|
|
ABJ-160
|
160
|
fix
|
1000~2500
|
1000~3150
|
2000 3000 4000
|
2400 3400 4400
|
|
ABJ-250
|
250
|
fix
|
1000~2500
|
1000~3150
|
2000 3000
|
2400 3400
|
|
ABJ-480
|
480
|
fix
|
1000~2500
|
1000~3150
|
2000 3000
|
2400 3400
|
|
|
|
1. Using air pressure over 5.0kgf/ cm
* Capacity indicates the weight of products and fixtures.
|
|
|
|
|
|
