Home > About Product > ABH TYPE |
|
 |
| |
 |
 |
1. Adopting an all-air circuit method(electricity free).
2. Simplicity and safety of its system, compared to other
equipment for conveyance, lead to highly efficient work.
3. In case of interruption of air supply, a built-in safety device
prevents the load from falling down.
4. This Balance Lift has a wide range of applications by using
attachments according to various purposes of work.
|
|
 |
 |
 |
| |

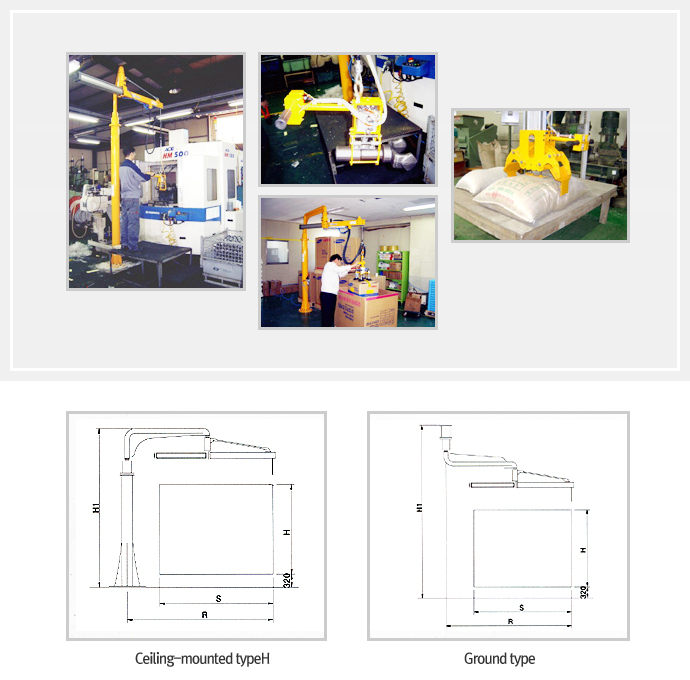

| Ceiling-mounted typeH |
|
MODEL
|
CAPACITY
(kg)
|
MOUNTING
|
H
|
H1
|
S
|
R max
|
Net Weight
kg
|
MOUNT
kg
|
|
ABH-120
|
120
|
fix
|
1450
|
2570
|
2115
|
2360
|
96
|
25
|
|
|
Using air pressure over 5.0kgf/cm
* Capacity indicates the weight of products and fixtures.
|
| Ground type |
|
MODEL
|
CAPACITY
(kg)
|
MOUNTING
|
H
|
H1
|
S
|
R
|
Net Weight
kg
|
MOUNT
kg
|
|
ABH-120
|
120
|
fix
|
1450
|
2570
|
2115
|
2360
|
96
|
30
|
|
mobile
|
1450
|
2570
|
2115
|
2360
|
96
|
640
|
|
|
Using air pressure over 5.0kgf/cm
* Capacity indicates the weight of products and fixtures.
|
|
|
|
|
|
